Hey there! As a supplier of Medium Voltage AC Drives, I'm super stoked to chat with you about the protection functions these bad boys offer. Let's dive right in!
Overcurrent Protection
One of the most crucial protection functions of a Medium Voltage AC Drive is overcurrent protection. You see, in any electrical system, there's always a risk of excessive current flowing through the drive. This can happen due to a short - circuit in the motor, a jammed load, or even a fault in the wiring.
When an overcurrent situation occurs, the Medium Voltage AC Drive kicks into action. It has sensors that constantly monitor the current flowing through the system. Once the current exceeds a pre - set threshold, the drive will either reduce the output power to the motor or shut down completely. This is a lifesaver for both the drive and the motor. Without overcurrent protection, the excessive current could cause overheating, damage to the windings, and even lead to a total system failure. It's like having a guardian angel for your electrical equipment.
Overvoltage and Undervoltage Protection
Voltage fluctuations are a common headache in electrical systems. Overvoltage can occur when there's a sudden load shedding in the power grid or due to lightning strikes. On the other hand, undervoltage can be caused by a high - demand load on the grid or a fault in the power supply.
A good Medium Voltage AC Drive is equipped with overvoltage and undervoltage protection. For overvoltage, the drive will detect the abnormal increase in voltage and take measures to protect itself. It might divert the excess voltage to a protection circuit or limit the input voltage to a safe level. In the case of undervoltage, the drive can either reduce the motor speed to match the available voltage or shut down to prevent damage. This protection ensures that the drive operates within a safe voltage range, increasing its lifespan and reliability.
Overheating Protection
Heat is the enemy of electrical components. When a Medium Voltage AC Drive is operating, it generates heat due to the power losses in the semiconductor devices and other components. If the heat isn't managed properly, it can cause the components to degrade quickly and eventually fail.
That's where overheating protection comes in. The drive has temperature sensors placed at critical points, such as the power modules and the heat sinks. These sensors continuously monitor the temperature. When the temperature rises above a certain limit, the drive will adjust its operation. It might reduce the output power to generate less heat or activate the cooling fans at a higher speed. In extreme cases, if the temperature continues to rise, the drive will shut down to prevent permanent damage.
Short - Circuit Protection
Short - circuits are the worst nightmare in an electrical system. They can cause a massive surge of current that can destroy the drive and other connected equipment in an instant. A Medium Voltage AC Drive has sophisticated short - circuit protection mechanisms.
The drive uses high - speed current sensors to detect a short - circuit condition. As soon as a short - circuit is detected, the drive will quickly interrupt the current flow. It does this by using fast - acting switches, such as insulated gate bipolar transistors (IGBTs). These switches can turn off within microseconds, preventing the excessive current from causing damage. This protection is essential for the safety of the entire electrical system.
Motor Overload Protection
Motors are often subjected to varying loads during their operation. Sometimes, the load can be too high for the motor to handle, leading to overloading. A Medium Voltage AC Drive can provide motor overload protection.
The drive monitors the motor current and compares it to the rated current of the motor. If the current exceeds the rated value for a certain period, it indicates an overload condition. The drive will then take appropriate action, such as reducing the motor speed or shutting down the motor to prevent overheating and damage. This protection helps to extend the life of the motor and ensures its efficient operation.
Phase Loss Protection
In a three - phase electrical system, a phase loss can occur due to a blown fuse, a loose connection, or a fault in the power supply. A phase loss can cause the motor to run unevenly, draw excessive current, and overheat.
A Medium Voltage AC Drive can detect a phase loss situation. It monitors the voltage and current of each phase. If a phase loss is detected, the drive will shut down the motor to prevent damage. This protection is vital for the proper functioning of three - phase motors and the overall reliability of the electrical system.
Ground Fault Protection
Ground faults occur when an electrical conductor comes into contact with the ground. This can be dangerous as it can cause electric shock and damage to the equipment. A Medium Voltage AC Drive has ground fault protection.
The drive uses ground fault sensors to detect any leakage current to the ground. If a ground fault is detected, the drive will quickly isolate the faulty circuit and shut down to prevent further damage and ensure safety. This protection is especially important in industrial environments where safety is a top priority.
Why Choose Our Medium Voltage AC Drives?

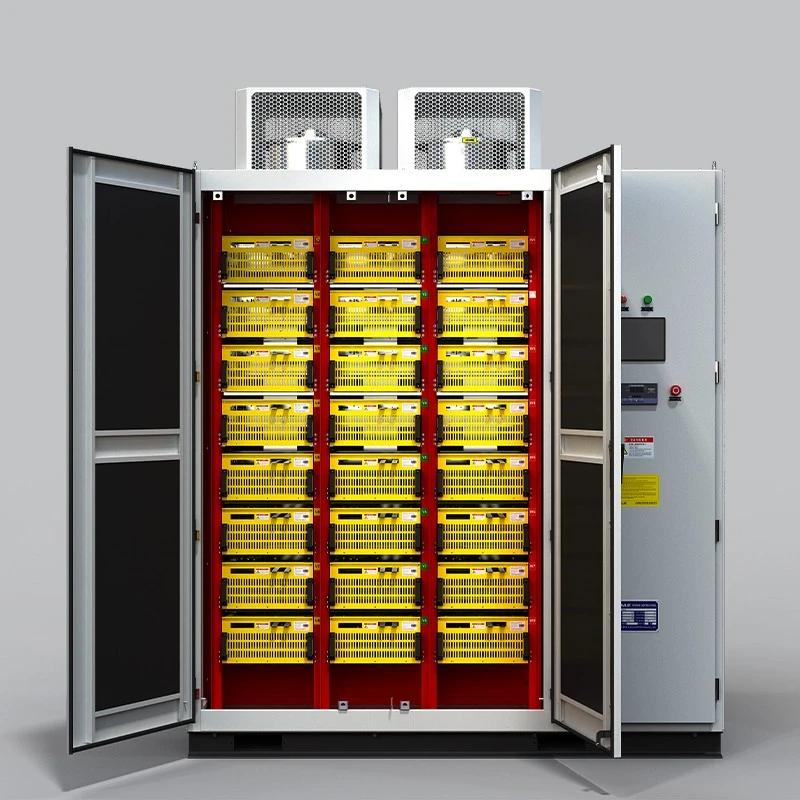

Our Medium Voltage AC Drive comes with all these advanced protection functions and more. We've designed our drives to be reliable, efficient, and easy to use. Whether you're in the manufacturing industry, the mining sector, or any other industry that requires high - power motor control, our drives are the perfect solution.
We also offer Medium Voltage Variable Speed Drive options that provide even more flexibility in motor control. And if you need higher voltage applications, our High Voltage VFD is a great choice.
If you're interested in our products and want to learn more about how our Medium Voltage AC Drives can benefit your business, don't hesitate to reach out. We're here to answer all your questions and help you find the right solution for your specific needs. Whether you need a single drive or a whole system, we've got you covered.
Contact us today to start a conversation about your requirements. We're excited to work with you and help you take your motor control to the next level!
